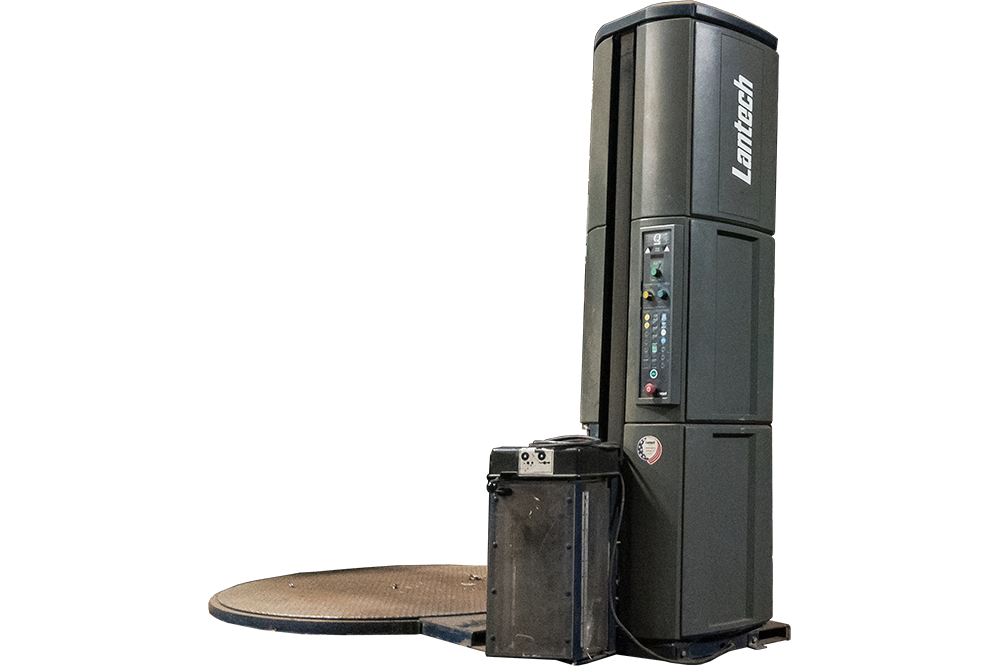

Is the Lantech Q300 stretch wrapping system causing disruptions in your packaging line due to persistent roll carriage issues? This advanced machine is crucial for maintaining packaging efficiency, yet when roll carriage malfunctions occur, they can bring operations to a grinding halt. From failing to wrap to the top of the load to alignment troubles, these common glitches can significantly impact productivity and cost savings. Understanding and troubleshooting these issues is key to ensuring the reliable performance of your stretch wrapping system and keeping your industrial operations running smoothly.
.png?v=1729019711)
Understanding Roll Carriage Issues in Lantech Q300
The roll carriage in the Lantech Q300 stretch wrapper is a crucial component that ensures the even application of pre-stretched film to palletized loads. It operates within a powered pre-stretch system, which is essential for maintaining load stability during transit and storage. The roll carriage moves up and down along the load during the wrapping process, applying film as required by the preset wrapping parameters.
Common issues with the roll carriage can disrupt this process, impacting the overall efficiency and effectiveness of the machine. These issues include:
-
Roll carriage not raising or lowering: This problem can prevent the machine from wrapping the load entirely, as the film may not cover the required height.
-
Failure to wrap to the top of the load: This can occur if the load height sensor is misaligned or if the preset timers are incorrectly set, leading to incomplete wrapping at the top.
-
Improper alignment of load sensor: Misalignment can result in inaccurate sensing of the load height, leading to inadequate wrapping coverage.
-
Slack in lift belt: A slack lift belt can cause the roll carriage to malfunction during its upward and downward movements, affecting the film application.
-
Speed control settings: Incorrect speed settings can cause the roll carriage to move too fast or too slow, resulting in uneven film application.
These issues can significantly impact productivity by causing delays in the wrapping process and leading to potential load instability. Addressing these problems promptly is critical to maintaining the efficiency of the Lantech Q300 stretch wrapping system. Regular maintenance and proper troubleshooting procedures are recommended to minimize downtime and ensure optimal performance.
.png?v=1729019709)
Troubleshooting Roll Carriage Not Raising or Lowering
Diagnosing lift issues with the roll carriage of the Lantech Q300 is crucial for maintaining operational efficiency and minimizing downtime. Understanding the underlying causes of lift problems can prevent further complications and ensure the stretch wrapping system operates smoothly.
Troubleshooting Steps:
-
Verify Roll Carriage Speed Control Knob Setting:
Ensure that the speed control knob is set correctly. An improper setting can result in the carriage not moving as expected.
-
Inspect Roll Carriage Up/Down Proximity Switches:
Check the proximity switches for proper function. They are responsible for detecting the limit positions of the roll carriage. Ensure the cables are intact and correctly connected.
-
Check Input Voltage to the Lift Drive Board:
Measure the input voltage to ensure it meets the required specifications for the lift drive board. Inconsistent or insufficient voltage can impair lift operations.
-
Examine Fuses on the Lift Drive Board:
Inspect the fuses for any signs of damage or failure. Blown fuses must be replaced to restore functionality.
-
Inspect Roll Carriage Lift Motor Wiring:
Examine the wiring connections to the lift motor. Look for any loose or damaged wires that could disrupt motor performance.
-
Evaluate the Condition of the Lift Belt for Slack:
Check the lift belt for slack or wear, which can prevent the carriage from moving properly. Adjust or replace the belt as needed.
Persistent issues with the roll carriage may require professional repair. If the problem is not resolved through these steps, it is advisable to consult with a qualified service technician to avoid further damage and ensure the machine's reliability.
.png?v=1729790620)
Diagnosing Roll Carriage Wrapping Issues
Achieving an optimal wrap to the top of the load is crucial for maintaining load stability and ensuring safe transit. If the film does not reach the top of the load, it could lead to load shifting or damage during transportation. This section provides solutions for common wrapping issues encountered with the Lantech Q300 roll carriage.
| Issue | Solution
Sensor Misalignment | Realign the load height sensor to ensure accurate detection of the load’s top.
Incorrect Preset Timers | Check and adjust the preset timers for top wrap counts to match the load specifications.
Roll Carriage Speed Settings | Adjust the speed settings of the roll carriage to ensure it moves adequately to the top.
Inadequate Overwrap Setting | Increase the overwrap setting to ensure film extends beyond the top of the load.
Load Sensor Malfunction | Inspect and replace the load sensor if it fails to detect the load height accurately. |
Maintaining the correct alignment of sensors is essential for efficient wrapping operations. Regular checks and calibrations should be part of routine maintenance to prevent misalignment, which can lead to incomplete wraps and potential load instability. Proper sensor function ensures the roll carriage applies film consistently, safeguarding the integrity of the palletized load.
.png?v=1730922191)
Preventive Maintenance for Roll Carriage Health
Scheduled preventive maintenance is critical to the longevity and performance of the Lantech Q300 roll carriage. Regular checks help identify potential issues before they lead to critical failures, ensuring the equipment operates efficiently and safely.
-
Inspect lift belts and proximity switches weekly:
Regular inspections of lift belts and proximity switches can prevent unexpected breakdowns. Look for signs of wear or loosening that may affect the roll carriage's movement.
-
Lubricate pre-stretch drive chain monthly:
Lubricating the pre-stretch drive chain is essential to reduce friction and ensure smooth operation. This prevents excessive wear and extends the life of the components.
-
Adjust sensors and controls as needed:
Periodic adjustments of sensors and controls maintain the accuracy of load detection and wrapping efficiency. Misalignments can lead to incomplete wraps and operational inefficiencies.
-
Check for wear and tear on mechanical components:
Conduct a thorough examination of mechanical parts for any signs of damage or deterioration. Replacing worn-out components proactively avoids potential equipment failures.
Regular maintenance checks should be scheduled to ensure optimal operation and to prevent costly downtime. By adhering to a consistent maintenance routine, operators can uphold the performance standards of the Lantech Q300 roll carriage system.
Accessing Technical Support for Roll Carriage Issues
When persistent roll carriage issues arise in the Lantech Q300, consulting technical support is often beneficial. This step is advisable when troubleshooting efforts do not resolve the problems, and professional assistance is required to prevent further complications or downtime.
-
Phone: 800-690-5110 option 3
-
Have machine serial number ready
For warranty claims, the machine's serial number is essential. This number helps verify eligibility and expedite the support process. Ensure this information is available when contacting Lantech's technical services to facilitate a smooth and efficient resolution.
Final Words
Addressing roll carriage issues in the Lantech Q300 system greatly enhances operational efficiency.
This article explored typical problems, such as the carriage failing to raise or wrap to the
top of loads, and provided troubleshooting steps for these malfunctions. It also emphasized
preventive maintenance and highlighted the importance of technical support.
Maintaining the roll carriage ensures reliable performance and reduces downtime. Regular inspections, spanning from speed controls to sensor alignments, prevent many common issues. By adopting proactive maintenance and seeking timely support, businesses can optimize their stretch wrapping operations.
Resolving Lantech Q300 Stretch Wrapping System roll carriage issues ultimately leads to improved productivity.
FAQ
Why is my Lantech Q300 roll carriage not raising or lowering?
A roll carriage issue usually involves checking the speed control knob, proximity switches, input voltage, and lift drive board. Also, inspect fuses, wiring, and the lift belt for slack.
What might cause the Lantech Q300 to fail in wrapping to the top of the load?
Sensor misalignment, incorrect preset timers, and improper roll carriage speed settings can lead to this issue. Ensure the load sensor is aligned and presets are correctly configured.
What are common issues with the roll carriage lift on a Lantech Q300?
Common issues include:
- Roll carriage not raising or lowering
- Failure to wrap to the top of the load
- Improper sensor alignment
- Slack lift belt
- Incorrect speed control settings
How do I perform preventive maintenance on the Lantech Q300 roll carriage?
Preventive maintenance includes:
- Weekly inspections of lift belts and proximity switches
- Monthly lubrication of the pre-stretch drive chain
- Sensor and control adjustments
- Regular checks for mechanical wear and tear
How can I contact technical support for Lantech Q300 roll carriage issues?
Contact technical support by:
- Calling tech support at 800-690-5110 option 3
- Keep the machine serial number ready for warranty claims and assistance.
