Are you losing time and resources due to inefficiencies with your Lantech Q300 Stretch Wrapping System? Discover how targeted adjustments can enhance machine performance and reduce film waste. The Lantech Q300's advanced features require precise calibration, but they offer significant improvements in operational efficiency. This article presents practical adjustment tips to ensure your stretch wrapping system is optimized for high performance, reliability, and cost-effectiveness. Dive into the technical details and learn how regular adjustments can maximize your investment, ensuring your packaging operations run smoothly with minimal interruption.
.png?v=1729790620)

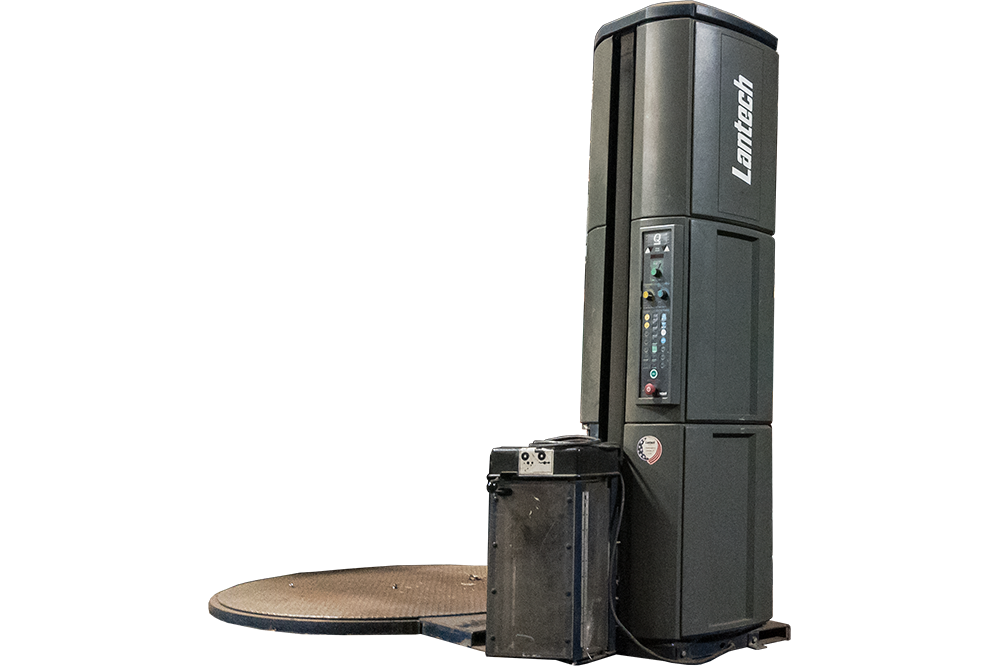

Importance of Machine Adjustments in the Lantech Q300 Stretch Wrapping System
Regular adjustments in the Lantech Q300 stretch wrapping system significantly enhance machine performance and efficiency. By fine-tuning components like the powered pre-stretch system, users can ensure optimal film application, leading to reduced film waste and consistent wrapping quality. Correct calibration of the system’s settings aids in maintaining operational efficiency, which is crucial in high-demand environments. Proper adjustments also help in preventing wear and tear, thereby extending the machine’s lifespan and ensuring it operates at peak performance.
Key benefits of routine machine adjustments include:
- Enhanced consistency in film application
- Reduction in film waste
- Increased operational efficiency
- Extended machine lifespan
- Improved load stability during transit
Beyond improving performance, regular adjustments facilitate troubleshooting and preventative care. They allow operators to identify potential issues early, reducing downtime and maintenance costs. Establishing a routine adjustment schedule can mitigate significant operational disruptions, ensuring the Q300 is always ready for use.
.png?v=1729019711)
Adjusting the Load Height Sensing Photocell on the Lantech Q300
The Lantech Q300 employs the Intelli-Sensor, a critical component in detecting load height and allowing for adjustable film overwrap. This sensor plays an essential role in the machine's operation by ensuring that the correct amount of film is applied to the load, which is crucial for maintaining wrapping efficiency and minimizing film waste. Proper calibration of the Intelli-Sensor is vital, as it directly impacts the machine's ability to detect the load height accurately, thereby optimizing the wrapping process.
Steps for Adjusting the Load Height Sensing Photocell:
-
Ensure the Sensor is Clean and Unobstructed:
- Before making adjustments, ensure there are no obstructions or dirt on the sensor that could affect its performance.
-
Position the Load Correctly:
- Place a typical load on the turntable to simulate actual operating conditions.
-
Adjust the Sensor Alignment:
- Align the sensor so that it targets the center of the load. Use the adjustment knobs to fine-tune the sensor's position.
-
Set the Desired Overwrap:
- Use the overwrap gauge to set the desired amount of film overlap at the top of the load. This adjustment dictates how much the film will extend beyond the top of the load.
-
Test the Sensor Operation:
- Run a test cycle to ensure the sensor detects the top of the load correctly. Check the film application to confirm the overwrap is as desired.
-
Fine-Tune as Necessary:
- If the film application is not optimal, make further adjustments to the sensor's alignment and the overwrap settings until satisfactory performance is achieved.
Common Sensor Issues:
| Issue | Solution |
|---|---|
| Sensor Fails to Detect Load | Check alignment and ensure the sensor is clean and unobstructed. |
| Incorrect Film Overwrap | Adjust the overwrap gauge to achieve the desired film extension. |
| Sensor Misalignment | Realign the sensor using the adjustment knobs to center it on the load. |
.png?v=1729019707)
Roll Carriage Up/Down Travel Switch Adjustment Techniques
The roll carriage up/down travel switches in the Lantech Q300 ensure the roll carriage operates within defined vertical boundaries, preventing jams and overextension. Proper adjustment of these proximity switches is critical to avoid mechanical stress and ensure smooth operation.
Steps for Adjusting the Roll Carriage Up/Down Travel Switches:
-
Locate the Switches:
- Access the switches inside the machine mast through the provided openings or access doors.
-
Loosen the Jam Nuts:
- Release the jam nuts on the proximity switch to enable adjustment.
-
Adjust the Switch Position:
-
Move the switch assembly up or down within its track to set the desired travel limits for the roll carriage.
-
Tighten the Jam Nuts:
- Secure the switch position by tightening the jam nuts, ensuring it remains fixed during operation.
-
Verify Adjustment:
- Manually move the roll carriage to its extreme positions and ensure the switches engage correctly, preventing the carriage from traveling beyond set limits.
Switch Adjustment Scenarios
| Scenario | Recommended Action |
|---|---|
| Carriage Stops Prematurely | Reposition the switch assembly to increase travel range. |
| Carriage Overextends | Adjust the switch to engage earlier, limiting travel. |
| Inconsistent Carriage Movement | Check switch alignment and secure connections. |
| Switch Fails to Engage | Inspect switch wiring and ensure proper mounting. |
.png?v=1729790625)
Techniques for Adjusting the Belt Slack Limit Switch
The belt slack limit switch in the Lantech Q300 stretch wrapping system is pivotal for detecting when the roll carriage belt becomes slack, signaling a potential jam. This switch's proper adjustment is essential to prevent operational downtime and maintain the machine's safety. It serves as a preventative measure that ensures the equipment runs smoothly by halting operations before a jam can cause damage or necessitate extensive repairs.
Adjustment Steps for the Belt Slack Limit Switch:
-
Prepare the Machine:
- Ensure the machine is off and the power is disconnected. Reinstall the roll carriage shipping bracket and bolts stored in the mast assembly to relieve tension on the lift belt.
-
Access the Switch:
- Open the top door of the mast assembly to access the switch located on the underside of the top cap.
-
Adjust the Switch Arm:
- Loosen the switch lever arm-mounting bolt using a 5/32 Allen wrench. Rotate the arm to approximately 30° from level, then tighten the bolt to secure the arm in place.
-
Test the Adjustment:
- Reconnect the power and test the machine by manually moving the roll carriage. Ensure the switch correctly detects a slack belt condition and engages to stop the operation.
Failure to properly adjust the belt slack limit switch can result in several issues, including unexpected machine stoppages and increased wear on the belt and associated components. Over time, this can lead to reduced machine efficiency and higher maintenance costs. Regular checks and adjustments ensure the system operates within safe parameters, minimizing the risk of sudden breakdowns and prolonging the machine's lifespan.
.png?v=1729790627)
Addressing Common Issues and Troubleshooting the Lantech Q300
The Lantech Q300 stretch wrapping system, while highly efficient, can encounter some common issues such as sensor misalignment and belt slack. Proper maintenance and calibration are crucial to resolving these problems to minimize downtime and maintain optimal machine functionality. Operators should be aware of these typical problems to ensure the machine runs smoothly and efficiently.
Common Problems and Solutions:
-
Sensor Misalignment:
- Solution: Realign the sensor and ensure its cleaning to prevent misdetection of load height, which may cause film misapplication.
-
Belt Slack:
- Solution: Adjust the belt tension to prevent jamming and ensure the roll carriage operates smoothly.
-
Film Breaks:
-
Solution: Check for film defects and ensure proper threading through the film delivery system. Clean any adhesive buildup on rollers.
-
Proximity Switch Malfunctions:
- Solution: Inspect and adjust the proximity switches responsible for roll carriage travel limits to maintain correct operation.
-
Turntable Issues:
- Solution: Ensure the turntable is on a level surface to prevent uneven rotation, and check drive belt tension.
| Problem | Possible Cause | Solution |
|---|---|---|
| Sensor Misalignment | Improper alignment or dirt on the sensor | Clean and realign the sensor |
| Belt Slack | Loose belt tension | Adjust the belt slack limit switch and tension |
| Film Breaks | Defective film or incorrect threading | Inspect film for defects and ensure proper threading |
Regular maintenance and timely troubleshooting are essential in addressing these issues effectively. Routine checks help in early identification of potential problems, reducing repair costs and preventing operational delays. By maintaining a comprehensive schedule for machine inspections and adjustments, operators can ensure the Lantech Q300 remains in excellent working condition, ready to meet production demands.
.png?v=1729790629)
Safety Measures for Adjusting the Lantech Q300
Safety is paramount when adjusting any equipment, and the Lantech Q300 stretch wrapping system is no exception. Proper adherence to safety protocols not only prevents injuries but also ensures the longevity and reliable operation of the machinery. Operators must prioritize safety by wearing appropriate personal protective equipment (PPE) such as gloves and safety glasses. Additionally, adjustments should only be conducted by trained personnel familiar with the machine's operation and potential hazards.
Essential safety measures include:
- Use Protective Gear: Always wear gloves and safety glasses during adjustments to protect against potential injuries.
- Power Down the Machine: Ensure the machine is completely turned off and unplugged before making any adjustments to avoid electrical hazards.
- Follow Lockout/Tagout Procedures: Implement lockout/tagout procedures to ensure the machine cannot be accidentally powered on during maintenance.
- Keep Clear of Moving Parts: Maintain a safe distance from moving components, such as the roll carriage and turntable, to prevent entanglement or crushing injuries.
- Inspect Tools and Equipment: Regularly check tools and equipment for wear and tear to ensure they are safe and functional.
- Adhere to Manufacturer Instructions: Follow the manufacturer's adjustment procedures closely to avoid equipment damage and ensure optimal performance.
Safety training and awareness play a crucial role in preventing accidents. Continuous education on safe practices and potential hazards associated with the Lantech Q300 are critical. Regularly updating safety protocols and conducting safety drills can significantly reduce the risk of accidents and ensure a safe working environment.
Final Words
Adjustments play a critical role in optimizing the performance of the Lantech Q300 Stretch Wrapping System. Regular calibration improves efficiency, wrapping quality, and reduces film usage, ensuring consistent operation. Understanding and implementing adjustment techniques for sensors, carriage travel switches, and belt slack limit switches enhance both performance and safety. Addressing common issues through troubleshooting can minimize downtime, maintaining operational reliability. Prioritizing safety measures during these adjustments also safeguards both operators and equipment. Adopting these best practices ensures the Lantech Q300 remains a high-performing asset in any packaging setup.
FAQ
What are the benefits of adjusting the Lantech Q300 stretch wrapping system regularly?
Adjustments in the Lantech Q300 stretch wrapping system enhance performance by optimizing film application, reducing waste, and maintaining operational efficiency. Routine adjustments ensure wrapping quality and can prevent machine downtime.
How do you adjust the load height sensing photocell on the Lantech Q300?
To adjust the load height sensing photocell on the Lantech Q300, proper calibration of the Intelli-Sensor ensures correct height detection. This process involves setting the sensor to detect load heights accurately for efficient film use.
What is the procedure for adjusting the roll carriage up/down travel switches on the Lantech Q300?
Adjusting the roll carriage up/down travel switches is vital for setting precise travel limits, preventing jams, and ensuring smooth operation. Calibration ensures the roll carriage operates within safe and efficient boundaries.
How important is adjusting the belt slack limit switch in the Lantech Q300?
Adjusting the belt slack limit switch is crucial to detect any slack in the roll carriage belt, which indicates a potential jam. Proper adjustment is key for preventing operational downtime and ensuring machine safety.
What common issues can occur with the Lantech Q300, and how can they be troubleshooted?
Common Lantech Q300 issues include sensor misalignment and belt slack. Troubleshooting involves ensuring correct sensor calibration and belt tension to prevent machine malfunctions and downtime.
What safety measures should be taken when adjusting the Lantech Q300?
When adjusting the Lantech Q300, follow safety measures such as using protective equipment, adhering to operating procedures, and undertaking proper safety training. This prevents injuries and equipment damage during adjustments.
