How can the Lantech Q300 Stretch Wrapping System transform your packaging efficiency? If you're dealing with oversized loads, understanding the role of turntable base extensions is crucial. These extensions, ranging from 5 ½” to 40", offer the flexibility you need by providing additional clearance and potentially impacting the rotation speed of the turntable for larger extensions. The result is an improved operation tailored to accommodate your specific packaging needs. This blog will delve into the nuances of these extensions, including benefits such as operational flexibility and essential adjustments in rotation speed for optimal performance.
.png?v=1729772945)

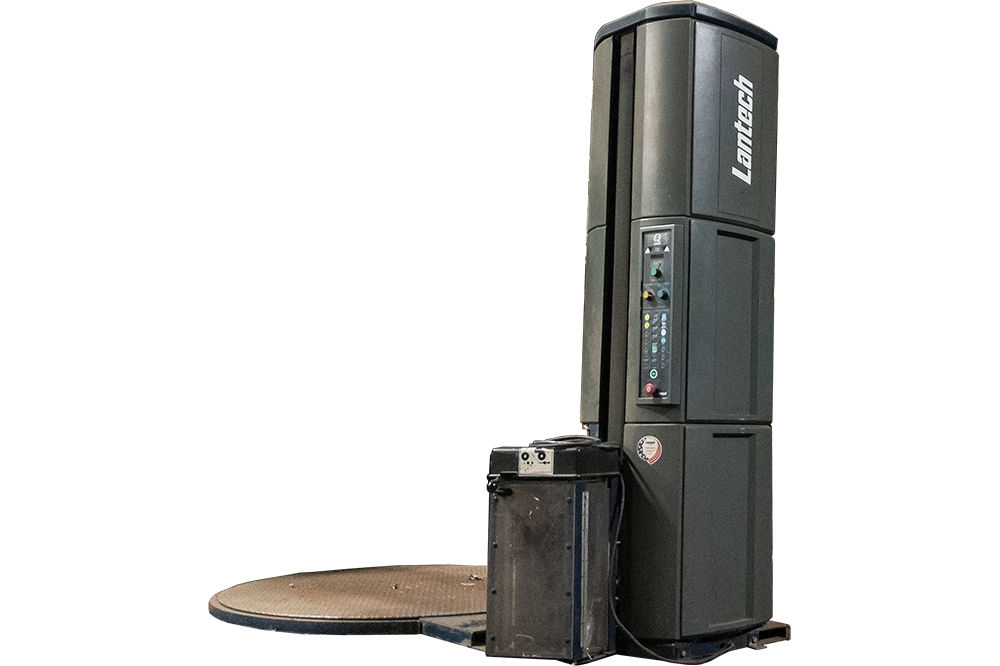

Understanding Lantech Q300 Turntable Base Extensions
Turntable base extensions are pivotal components in the Lantech Q300 Stretch Wrapping System, designed to expand the operational capabilities of the machine. These extensions are available in lengths ranging from 5 ½ inches to 40 inches, providing additional clearance necessary for handling oversized loads. By increasing the distance between the turntable and the machine mast, these extensions allow for the wrapping of larger and irregularly shaped loads, enhancing the overall versatility and efficiency of the stretch wrapping process.
The use of turntable base extensions significantly improves the flexibility of operations. They accommodate varying load sizes without necessitating a complete overhaul of the existing setup, thereby reducing downtime and increasing productivity. However, it's crucial to note that using extensions longer than 11 inches impacts the turntable rotation speed, decreasing it from the standard 1-12 rpm to 1-8 rpm. This alteration ensures stability and safety during the wrapping of larger loads by compensating for the increased load radius.
Benefits of Lantech Q300 Turntable Base Extensions:
- Increased Clearance: Provides necessary space for handling oversized loads.
- Enhanced Flexibility: Adapts to various load sizes without extensive modifications.
- Safety and Stability: Adjusts turntable speed for secure operation.
- Extended Load Capacity: Supports larger and irregularly shaped loads without compromising machine performance.
Installing Lantech Q300 Base Extensions
To properly install base extensions on the Lantech Q300 Stretch Wrapping System, preparation is crucial. The installation requires specific tools and safety measures. Essential tools include wrenches, sockets, and a forklift for positioning the machine. Safety precautions should be observed, such as ensuring the area is clear of obstructions and wearing appropriate protective gear to prevent injury. The machine should be disconnected from the power supply to avoid electrical hazards during installation.
Installation Guide
-
Position the Machine: Move the Lantech Q300 to the designated setup area using a forklift. Ensure the area provides sufficient space for installation and operation.
-
Unpack the Machine: Remove all packing materials, including any lag bolts, brackets, and boards securing the machine to its shipping skid.
-
Secure the Base Extension: Attach the base extension between the turntable and the machine mast. Use the provided bolts and washers to ensure a secure connection.
-
Align the Turntable: Ensure that the turntable is properly aligned with the base extension. This alignment is critical for maintaining the smooth operation of the turntable.
-
Tighten Fasteners: Use wrenches and sockets to tighten all fasteners securely. Check all connections to ensure they are tight and secure to prevent any operational issues.
-
Inspect the Installation: Verify that the installation is correct and that all components are securely fastened. Make any necessary adjustments to ensure proper alignment.
- Reconnect Power: Once the installation is complete and verified, reconnect the machine to the power supply. Test the operation to ensure everything is functioning correctly.
Common Installation Challenges
During the installation process, challenges such as misalignment of the turntable or difficulties in securing the base extension might arise. To address these issues, double-check the alignment and ensure all fasteners are tightened properly. If the turntable does not operate smoothly, revisit the alignment steps and make necessary adjustments. In some cases, additional support or shims may be required to achieve proper alignment. If problems persist, consult the machine manual or contact technical support for further assistance.
Applications and Benefits of Turntable Base Extensions
Turntable base extensions play a crucial role in the Lantech Q300 Stretch Wrapping System by accommodating oversized loads. These extensions provide the necessary clearance from the machine mast, ensuring safe and efficient operation. They are particularly beneficial in industries with demanding packaging requirements, such as automotive and furniture, where large and irregularly shaped loads are common.
Industries that benefit most from turntable base extensions:
- Automotive
- Furniture
- Heavy Equipment Manufacturing
- Appliance Manufacturing
- Construction Materials
The use of turntable base extensions enhances load handling efficiency by allowing the machine to wrap larger loads without compromising stability or safety. By extending the turntable, these extensions facilitate the wrapping process for various load sizes, enabling businesses to maintain productivity while accommodating diverse packaging needs.
Effects of Base Extensions on Turntable Rotation Speed
The integration of base extensions in the Lantech Q300 Stretch Wrapping System significantly influences the turntable's rotation speed. This adjustment is crucial for maintaining operational stability, especially when wrapping oversized loads. Base extensions increase the distance between the turntable and the machine mast, necessitating a recalibration of rotation speed to ensure the load's stability during the wrapping cycle. When the base extension exceeds 11 inches, the standard rotation speed range of 1-12 rpm is reduced to 1-8 rpm. This reduction accommodates the increased load radius, preventing instability and ensuring the wrapping process is smooth and secure.
Factors influencing turntable speed adjustments:
-
Extension Length: Longer base extensions require reduced rotation speed to compensate for the increased load radius.
-
Load Size: Larger and heavier loads necessitate a slower rotation to maintain stability and prevent the load from shifting during wrapping.
-
Machine Configuration: The existing setup of the Q300, including the weight and distribution of the load, can affect the optimal rotation speed.
Maintaining speed stability is vital for the safe operation of the Lantech Q300. Adjusting the turntable speed ensures that the machine can handle larger loads without compromising safety. Proper speed calibration prevents load tipping or slipping, which could lead to operational hazards. Therefore, operators must be attentive to the speed settings when configuring the machine for various load sizes and extension lengths, ensuring that the system's performance remains consistent and reliable.
Available Lengths and Specifications of Base Extensions
Choosing the correct length for a base extension is critical in optimizing the Lantech Q300 Stretch Wrapping System's performance. Base extensions increase the distance between the turntable and the machine mast, providing necessary clearance for larger loads. The selection of a base extension length should consider the load size and the space required for efficient operation. This decision ensures the machine can accommodate varying load dimensions without compromising the wrapping process's efficiency.
| Extension Length | Dimension (in inches) | Suitable Load Sizes |
|---|---|---|
| 5 ½" | 5.5 | Small to Medium Loads |
| 11" | 11 | Medium Loads |
| 18" | 18 | Medium to Large Loads |
| 24" | 24 | Large Loads |
| 36" | 36 | Extra Large Loads |
| 40" | 40 | Oversized Loads |
Matching the appropriate extension length with specific load requirements is essential for maintaining operational efficiency. When selecting a base extension, consider the load's diagonal measurement to ensure adequate clearance and effective film application. Base extensions longer than 11 inches may necessitate a reduction in turntable rotation speed to maintain load stability during the wrapping cycle.
Maintenance and Troubleshooting for Lantech Q300 Base Extensions
Regular maintenance of the Lantech Q300 base extensions is crucial to ensure the smooth operation and longevity of the stretch wrapping system. Consistent upkeep includes inspecting components for wear and verifying proper assembly. Regular checks help prevent mechanical failures and improve the overall performance of the equipment. Maintenance involves not only visual inspections but also functional checks to address any potential issues before they affect machine efficiency.
Regular Maintenance Tasks:
-
Inspect Fasteners: Check all nuts, bolts, and screws for looseness. Tighten or replace as needed to prevent operational disruptions.
-
Check Belt Tension: Ensure that the turntable drive belt maintains the correct tension. Adjust if there is any slack to prevent slippage during operation.
-
Lubricate Moving Parts: Apply lubrication to pre-designated points, such as the turntable drive belt and any roller assemblies, to minimize friction and wear.
-
Inspect for Wear and Tear: Examine all mechanical components for signs of wear or damage, particularly the drive belts and rollers.
-
Clean and Clear Debris: Keep the area around the base extensions clean. Remove any debris that could interfere with machine operation.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Reduced rotation speed | Loose drive belt | Tighten or replace the drive belt |
| Unexpected noise | Debris in the drive mechanism | Clear debris and check for damage |
| Irregular wrapping | Misaligned turntable | Realign turntable and check base extension |
| Vibration during operation | Unbalanced load or loose fasteners | Secure load and tighten fasteners |
Routine inspections are essential to identify and rectify minor issues before they escalate into significant problems. Adhering to a regular maintenance schedule not only prolongs the life of the base extensions but also ensures consistent performance, reducing the likelihood of operational disruptions. This proactive approach minimizes downtime and maximizes productivity, contributing to a seamless packaging process.
Final Words
The Lantech Q300 Stretch Wrapping System's turntable base extensions significantly enhance packaging flexibility and efficiency. These extensions provide essential clearance for oversized loads while impacting turntable rotation speeds. Proper installation, maintenance, and speed management enable seamless operation across industries such as automotive and furniture. Choosing from various extension lengths allows customization to accommodate diverse load requirements.
Embracing these extensions bolsters the versatility of the Lantech Q300, contributing to a more robust and reliable packaging solution. The implementation of base extensions presents a strategic advantage in achieving cost savings and meeting advanced packaging demands.
FAQ
Q: What are Lantech Q300 turntable base extensions?
A: Turntable base extensions for the Lantech Q300 offer lengths from 5 ½” to 40". These extensions provide additional clearance for oversized loads but can reduce rotation speed, especially for lengths over 11".
Q: How do base extensions impact turntable rotation speed?
A: Using a base extension of 11" or more reduces the turntable rotation speed from 1-12 rpm to 1-8 rpm. This adjustment accommodates an increased load radius, ensuring stability during operation.
Q: What are the typical applications of base extensions?
A: Base extensions are ideal for industries handling oversized loads, such as automotive and furniture. They enhance load management by providing necessary mast clearance.
Q: How do I install Lantech Q300 base extensions?
A: Installation involves moving the Q300 to the setup area, removing packing materials, and securing the extension between the turntable and mast using appropriate tools like wrenches, sockets, and a forklift.
Q: What are the lengths and specifications of base extensions?
A: Base extensions are offered in lengths of 5 ½”, 11”, 18”, 24", 36", and 40". The selection depends on load size and required clearance for secure wrapping operations.
Q: What does the maintenance of Lantech Q300 base extensions entail?
A: Regular maintenance includes checking for loose fasteners and ensuring proper tension. Troubleshooting might address reduced speed issues or unexpected noise, emphasizing routine inspections to prevent disruptions.
