Can the power of precision really transform your packaging line? In the world of industrial packaging, every detail counts, especially when it comes to motor calibration in the Lantech Q300 Stretch Wrapping System. This meticulous process, crucial for maintaining system efficiency and reliability, often goes unnoticed yet plays a pivotal role in ensuring seamless operations. Dive into how the motor controllers, the unsung heroes within the Q300, manage everything from turntable rotation to maintaining film tension. Discover how routine calibration not only enhances performance but also unlocks significant cost savings and technological advancements in your packaging process.

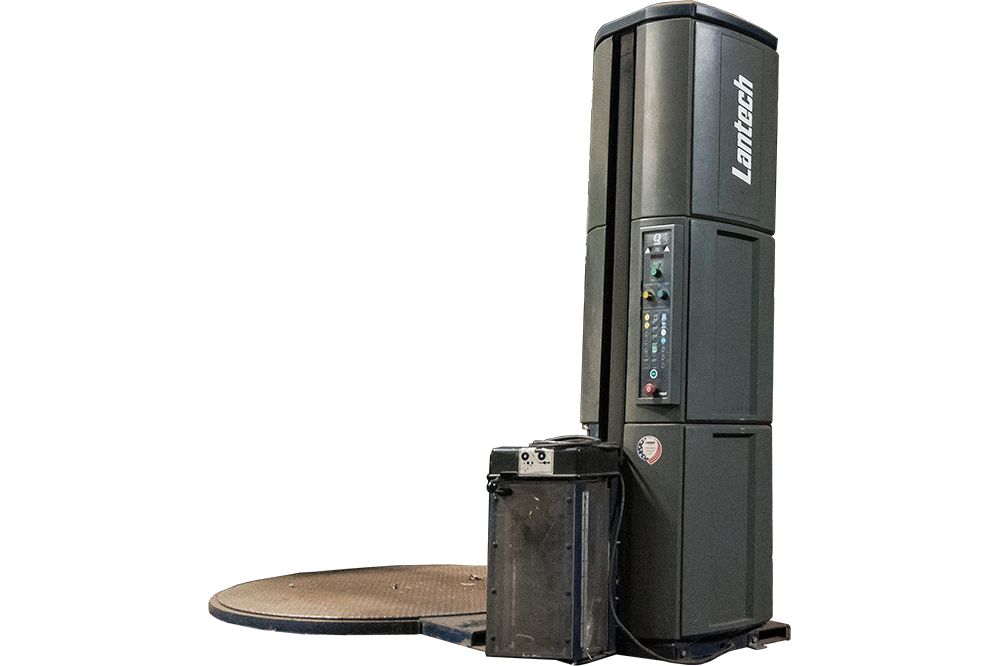

Overview of Motor Controllers in the Lantech Q300
Motor controllers in the Lantech Q300 Stretch Wrapping System are crucial for managing the operational settings and precision control necessary for efficient wrapping. These controllers regulate the motion of various components, ensuring smooth acceleration, deceleration, and consistent speed during the wrapping process. They play a pivotal role in maintaining the seamless operation of the system, contributing to optimal performance and reliability. Accurate calibration of these motor controllers is vital as it directly affects the efficiency and longevity of the machinery, preventing issues such as mechanical wear or system overloads.
The importance of regular calibration cannot be overstated, as it is essential for sustaining the precise operations of the Lantech Q300. Proper calibration ensures that the components operate within their specified parameters, thus avoiding unnecessary strain on the machine. This not only prolongs the lifespan of the equipment but also enhances the quality of the wrapping, ensuring that loads are securely and consistently wrapped. Regular maintenance checks and adjustments are recommended to keep the system in top condition and to prevent potential malfunctions.
Key components managed by the motor controllers include:
- Turntable rotation control
- Roll carriage lift control
- Power Roller-Stretch® system
- PLUS Motor Control
- Load cell amplifier management
.png?v=1730920680)
Calibrating the Turntable Rotation Motor Control Board
Calibrating the Turntable Rotation Motor Control Board in the Lantech Q300 is vital for ensuring the precise and smooth operation of the turntable. This process manages the speed, acceleration, and deceleration settings to keep the system running efficiently and within the specified speed and torque parameters. Proper calibration prevents issues such as mechanical wear or system overload, contributing to the longevity and reliability of the equipment.
Calibration involves several key settings, each playing a role in the seamless functioning of the turntable. The Deceleration adjustment allows for smooth slow-downs, ensuring the turntable does not overshoot its home position. Acceleration settings are crucial to prevent jerky starts, promoting a steady ramp-up to speed. Setting the Maximum Speed defines the operational range, while the Minimum Speed ensures the turntable can perform slow operations effectively. Current Limit adjustments are critical to prevent overloading the motor, and IR Compensation is necessary for adapting to load variance.
Calibration Steps:
-
Adjust Deceleration for smooth slow-downs: Set the deceleration rate to ensure the turntable slows down smoothly as it approaches the home position.
-
Set Acceleration to avoid jerky starts: Configure the acceleration rate to provide a steady start without abrupt movements.
-
Configure Maximum Speed for desired operation range: Adjust the potentiometer to set the maximum speed, ensuring it suits the application requirements.
-
Fine-tune Minimum Speed for slow operations: Set the minimum speed for operations requiring lower speeds, ensuring stability and control.
-
Set Current Limit to avoid overloading: Adjust the current limit to prevent the motor from drawing excessive current, which can lead to overheating or damage.
-
Adjust IR Compensation for load variance: Configure IR compensation to maintain consistent motor performance regardless of varying load conditions.
Neglecting calibration can lead to various issues, such as inconsistent wrapping, increased wear on mechanical parts, and potential malfunctions due to overloading. Regular calibration checks ensure the system operates smoothly, maintaining efficiency and prolonging equipment life.
.png?v=1730920682)
Roll Carriage Lift Motor Control Board Adjustment Guide
The Roll Carriage Lift Motor Control Board is responsible for the vertical movement of the roll carriage in the Lantech Q300, a crucial aspect for effective wrapping operations. Proper calibration of this board ensures smooth and efficient wrapping by managing key settings such as Dead Band, Response, IR Compensation, Reverse and Forward Current Limits, and Maximum Speed. These adjustments are vital for maintaining consistent performance and avoiding mechanical issues.
Calibration Steps:
-
Adjust Dead Band to prevent motor creep: Begin by setting the Dead Band to eliminate any unintended motor movements when no input signal is present. Rotate the potentiometer clockwise until the motor stops any creeping motion.
-
Set Response for dynamic control: Configure the Response potentiometer to manage the dynamic response of the controller. A 50% setting is recommended, but adjustments may be necessary to avoid instability.
-
Calibrate IR Compensation for load consistency: This setting helps the motor handle varying loads without performance drops. Adjust only if the motor is replaced or if performance issues are noted.
-
Configure Reverse and Forward Current Limits for motor protection: Adjust the Reverse Current Limit for the upward movement and the Forward Current Limit for the downward movement to ensure the motor does not draw excessive current, protecting it from damage.
-
Set Maximum Speed for optimal performance: Adjust the Maximum Speed setting to control the roll carriage's top speed during operation. Measure the armature voltage to ensure it corresponds to the desired speed.
-
Fine-tune Acceleration settings: Adjust the Forward and Reverse Acceleration settings to avoid abrupt starts and stops, ensuring smooth motion transitions.
Calibration Settings Summary
| Setting | Function | |------------------------|--------------------------------------------------------------| | Dead Band | Prevents motor creep | | Response | Controls dynamic response to changes | | IR Compensation | Adjusts for load variability | | Reverse Current Limit | Limits current during upward movement | | Forward Current Limit | Limits current during downward movement | | Maximum Speed | Sets the maximum speed for roll carriage operation |
Proper calibration of the Roll Carriage Lift Motor Control Board ensures the Lantech Q300 operates efficiently, minimizing wear and tear on components and maintaining a high standard of wrapping performance. Regular checks and adjustments are essential to sustain optimal functionality.
Power Roller-Stretch® Motor Control Board Adjustments
The Power Roller-Stretch® Motor Control Board in the Lantech Q300 is integral to controlling film tension and delivery speed during wrapping cycles. Its adjustments are crucial for maintaining film integrity and preventing breakage, ensuring that the wrapped load is secure and stable. The board governs several key settings: Maximum Speed, Minimum Speed, Speed Compensation, Corner Compensation, and Reduce Tension. Proper calibration of these settings is fundamental to achieving optimal performance and preventing issues such as film breakage or uneven wrapping.
Adjustment Steps:
-
Set Maximum Speed for desired film delivery rate: Adjust the potentiometer to control the top speed of the film delivery system, ensuring it aligns with the operational requirements of the wrapping process.
-
Adjust Minimum Speed to control film tension: Configure this setting to establish the lowest speed at which the film is delivered, crucial for maintaining adequate tension without causing film tearing.
-
Fine-tune Speed Compensation for seamless operation:
This adjustment ensures consistent film application, compensating for variability in turntable speed or load characteristics.
-
Configure Corner Compensation to handle load corners: Adjust to accommodate changes in film demand when wrapping around load corners, providing additional film tension to prevent film slack.
-
Calibrate Reduce Tension for load transitions: Set this parameter to decrease film tension at the beginning and end of the wrap cycle, minimizing the risk of film breakage during these phases.
Improper settings on the Power Roller-Stretch® Motor Control Board can lead to issues such as inconsistent tension, film breakage, and inefficient wrapping, which may compromise load stability. Regularly reviewing and adjusting these settings is essential for maintaining high wrapping quality and operational efficiency.
PLUS Motor Control Board Calibration
The PLUS Motor Control Board is an optional upgrade for the Lantech Q300 Stretch Wrapping System, designed to enhance film stretching capabilities. With this board in place, the system can better handle varying load conditions, ensuring more precise film application and improved responsiveness.
Proper calibration of the PLUS Motor Control Board ensures efficient and reliable wrapping operations, optimizing film usage and maintaining consistent load security. Regular verification is advisable to sustain optimal performance.
Load Cell Amplifier Calibration in the Lantech Q300
Calibrating the load cell amplifier in the Lantech Q300 is essential for ensuring precise film tension measurement. This calibration is crucial for consistent wrapping quality and involves adjusting the amplifier to reflect accurate force readings. The process not only maintains the integrity of the film application but also optimizes the overall performance of the stretch wrapping system.
Accurate calibration of the load cell amplifier is beneficial as it ensures the film is applied with the correct tension, reducing the risk of film breakage and ensuring the load is securely wrapped. This calibration process also extends the lifespan of the equipment by preventing undue stress on the wrapping materials and machinery. Regular calibration checks are recommended to maintain optimal system performance.
Essential Maintenance Tips for Lantech Q300 Motor Controllers
Routine maintenance of motor controllers in the Lantech Q300 is crucial for ensuring the reliability and efficiency of the stretch wrapping system. Regular upkeep helps prevent unexpected downtimes and extends the lifespan of the equipment. By systematically addressing potential issues through maintenance, businesses can safeguard their operations from costly disruptions.
To effectively maintain motor controllers, it is important to perform several key tasks. These tasks not only help in identifying and rectifying minor issues before they escalate but also ensure that the system operates within its optimal parameters.
Maintenance tasks for the Lantech Q300 motor controllers include:
- Conduct visual inspections for wear and damage
- Lubricate moving parts as necessary
- Check and secure electrical connections
- Inspect potentiometer settings for accuracy
- Test system response under load conditions
Below is a table suggesting maintenance intervals for each task:
| Task | Interval | |--------------------------------------------|----------------| | Visual inspections for wear and damage | Weekly | | Lubricate moving parts | Monthly | | Check and secure electrical connections | Bi-weekly | | Inspect potentiometer settings | Monthly | | Test system response under load conditions | Quarterly |
By adhering to these maintenance practices, operators can keep the Lantech Q300 running smoothly, minimizing the risk of operational failures and maintaining the quality of the wrapping process.
Final Words
Calibrating the motor controllers of the Lantech Q300 Stretch Wrapping System is crucial for optimal performance. From managing turntable and roll carriage operations to fine-tuning Power Roller-Stretch® and PLUS motor control boards, each component plays a vital role in efficient packaging.
Accurate calibration reduces mechanical wear, ensures consistent film application, and maintains system reliability. Through regular maintenance and adjustments, packaging professionals can improve efficiency and reduce costs.
Embracing these practices with the Lantech Q300 Stretch Wrapping System supports both cost-effectiveness and technological advancement, enhancing overall packaging solutions.
FAQ
What is the function of motor controllers in the Lantech Q300?
Motor controllers in the Lantech Q300 manage the operation of components like the turntable and roll carriage, allowing precise control over acceleration, deceleration, and speed. Calibration is crucial for peak performance.
How do you calibrate the turntable rotation motor control board?
Calibration involves adjusting settings such as Deceleration, Acceleration, Maximum and Minimum Speed, Current Limit, and IR Compensation to ensure the turntable operates efficiently, preventing overloads or mechanical stress.
Why is it important to regularly calibrate motor controllers in automated machinery?
Regular calibration ensures system efficiency by maintaining proper speed, stability, and operation parameters, minimizing mechanical stress, and preventing operational failures due to inaccurate settings or increased wear.
What are the steps to adjust the Roll Carriage Lift Motor Control Board?
Adjust Dead Band and Response for dynamic control, calibrate IR Compensation, set Reverse/Forward Current Limits to protect the motor, and configure Maximum Speed for optimal performance.
What components are managed by motor controllers in the Lantech Q300?
Motor controllers are responsible for:
- Turntable rotation control
- Roll carriage lift control
- Power Roller-Stretch® system
- PLUS Motor Control
- Load cell amplifier management
What adjustments are necessary for the Power Roller-Stretch® Motor Control Board?
Adjustments should be made for Maximum Speed, Minimum Speed, Speed Compensation, Corner Compensation, and to Reduce Tension. Proper settings are essential for maintaining film integrity during wrapping.
How do you conduct Load Cell Amplifier Calibration in the Lantech Q300?
Ensure load cell alignment, use jumper J4 for zero output adjustments, connect a voltmeter, apply forces using a gauge, and calibrate based on voltage readings to ensure accurate film tension measurement.
What maintenance tasks are essential for motor controllers in the Lantech Q300?
Routine tasks include visual inspections for damage, lubricating moving parts, securing electrical connections, checking potentiometer settings, and testing system response to maintain longevity and minimize breakdowns.
