Does adjusting the load height sensor feel more complex than it should be? In the high-demand world of industrial packaging, the Lantech Q300 Stretch Wrapping System stands out as a stalwart for its efficiency and precision. However, knowing how to leverage its Intelli-Sensor can make a significant difference. This article dives into the key components of the Lantech Q300, focusing on the crucial role of the load height sensor and the ease of its non-adjustable design. By understanding these elements, packaging professionals can enhance operation efficiency, reduce costs, and maintain reliability.
Key Components of the Lantech Q300 Stretch Wrapping System

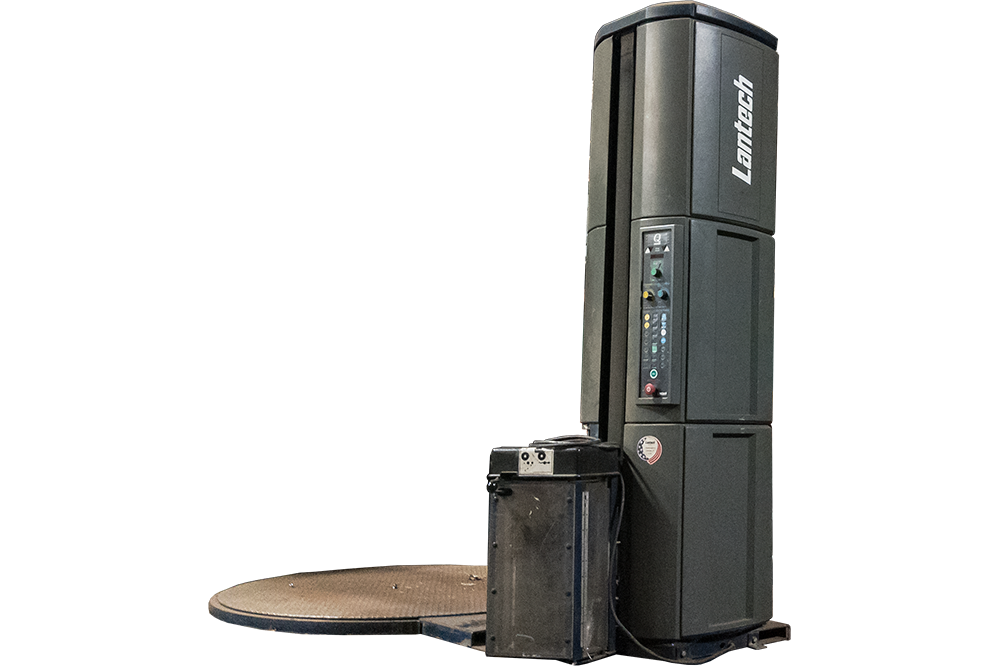

The Lantech Q300 Stretch Wrapping System is an advanced machine designed to enhance the stability of palletized loads during storage and transit. This system is composed of several key components, each serving a critical function in the wrapping process:
- Machine Mast: Supports the roll carriage and houses control elements. It ensures vertical movement for the application of stretch film.
- Turntable Base: Rotates the load to facilitate even film distribution. It supports the load and is powered to ensure consistent rotation speed.
- Roll Carriage: Holds and dispenses the stretch film. The carriage moves vertically to wrap the film around the load.
- Intelli-Sensor: A load height sensor that accurately detects the top of the load. It is crucial for determining the film's starting and stopping points without needing manual adjustment.
- Control Panel: Provides user interface for operation. It includes controls for adjusting wrapping parameters and initiating the wrap cycle.
The Intelli-Sensor plays an essential role by automatically detecting load height within a set focal distance, as specified on the sensor's label. Its design eliminates the need for manual calibration, ensuring consistent operation across varying load sizes.
Regular Maintenance of the Lantech Q300
Regular maintenance of the Lantech Q300 is instrumental in maximizing the machine's longevity and performance. Although designed to be maintenance-free, periodic inspections and upkeep are essential for optimal operation. Routine maintenance not only extends the lifespan of the Q300 but also enhances its reliability and efficiency in industrial settings. By systematically addressing potential issues before they lead to machine downtime, operators can maintain consistent production schedules and minimize costly interruptions.
Essential maintenance tasks for the Q300 include:
-
Visual Inspections: Regularly inspect all fasteners, drive belts, and other visible components for wear and tear. Tighten or replace parts as necessary to prevent mechanical failures.
-
Lubrication: Apply lubrication to specified components, such as the pre-stretch drive chain and sprockets, to reduce friction and wear during operation.
-
Check Drive Belts: Ensure that the turntable drive belt and film delivery system lift belt are properly tensioned and free from wear. Adjust or replace as needed to maintain efficient operation.
- Noise Assessment: Listen for unusual noises during machine operation, which can be indicative of underlying issues requiring attention.
These maintenance activities can significantly reduce the likelihood of unexpected failures and ensure the safety of operators. By proactively maintaining the Q300, potential hazards are minimized, and the machine operates within its designated safety parameters. Regular checks and appropriate action can prevent minor issues from escalating into major problems, thereby safeguarding both the equipment and personnel.
Understanding and Adjusting the Load Height Sensor on the Q300
The Lantech Q300 employs the Intelli-Sensor for load height detection, a pivotal component in ensuring effective wrapping cycles. This sensor detects the load's height to determine where the stretch film should start and stop, facilitating consistent wrapping without manual calibration. The Intelli-Sensor is designed with a fixed focal distance, stated on its label, ensuring it detects objects within this range accurately.
Testing the Intelli-Sensor involves verifying its detection range and accuracy using specific targets. Below is a table illustrating the testing procedure for the Intelli-Sensor:
|
Target Type |
Detection Range |
|
White Target |
Within 5 inches of the focal distance (e.g., 96” detects at 91”) |
|
Black Target |
Within 10 inches of the focal distance (e.g., 96” detects at 82”) |
If the Intelli-Sensor does not operate as expected, first ensure it is properly mounted and connected electrically. If discrepancies persist, check the sensor's distance against the focal range on its label. If the sensor fails to detect targets as outlined, cleaning the sensor surface and re-testing might resolve the issue. Persisting malfunctions should prompt consulting technical support or referring to the machine's troubleshooting guide for further diagnostics.
Adjusting the Roll Carriage Travel Switches on the Q300
The roll carriage travel limits in the Lantech Q300 are controlled by two proximity switches located within the machine mast. These switches play a crucial role in setting the maximum up and down travel limits of the roll carriage, ensuring precision and safety during the wrapping process. Proper adjustment of these switches is vital to maintain operational efficiency and avoid any potential mechanical issues.
To adjust the roll carriage travel switches, follow these steps:
-
Step 1: Ensure that the machine is powered down and the emergency stop is engaged. This is a necessary safety precaution before beginning any adjustments.
-
Step 2: Access the proximity switches by opening the machine mast access doors. These switches are generally located along the path of the roll carriage within the mast.
-
Step 3: Identify the proximity switch jam nuts. Loosen these jam nuts to allow for adjustment of the switch position.
-
Step 4: Adjust the proximity switch by carefully sliding it to the desired position along the mounting track. This sets the new travel limit for the roll carriage.
-
Step 5: Once positioned correctly, tighten the jam nuts to secure the switch in place. Ensure it is firmly secured to prevent any movement during operation.
-
Step 6: Close the machine mast access doors and restore power to the machine. Test the roll carriage movement to confirm that the switches are functioning as intended, and that the travel limits are accurate.
These adjustments ensure that the roll carriage operates within safe parameters, preventing over-travel and potential damage to the equipment. Regular checks and adjustments of these switches are recommended to maintain the Q300's optimal performance and safety standards.
Maintenance and Adjustment of the Belt Slack Limit Switch
The belt slack limit switch on the Lantech Q300 is an essential component designed to detect slack conditions in the lift belt, which could indicate a potential jam. This switch ensures the machine halts operation to prevent damage when the belt becomes slack, serving as a crucial safeguard during the wrapping process. Proper maintenance and adjustment of this switch are vital to ensure the machine operates smoothly and safely.
To adjust the belt slack limit switch, follow these steps:
-
Loosen the Switch Arm: Using a 5/32 Allen wrench, loosen the bolt securing the switch lever arm.
-
Adjust the Arm Position: Rotate the switch arm to the desired position, typically starting at approximately 30° from level, which is the standard position.
-
Tighten the Bolt: Secure the arm by tightening the bolt to maintain the adjusted position.
After adjustment, it is important to test the switch's operation. Power the machine and simulate a slack condition to ensure the switch activates and stops the machine as intended. This check will confirm that the switch is correctly aligned and functional, thereby preventing potential operational issues and ensuring the safety of the equipment and operators. Regular checks and adjustments of the belt slack limit switch are recommended as part of routine maintenance to maintain optimal performance.
Troubleshooting Common Issues with the Lantech Q300
Operators of the Lantech Q300 Stretch Wrapping System may encounter several common issues during operation. These issues can range from power failures and incorrect wrap counts to sensor malfunctions. Understanding these issues and their potential solutions is crucial for maintaining optimal performance and minimizing downtime.
| Problem | Possible Cause | Solution |
|---|---|---|
| Power Failure | Loose connections or blown fuses | Inspect power connections and replace any blown fuses |
| Incorrect Wrap Count | Improper sensor alignment or settings | Verify sensor alignment and adjust settings as necessary |
| Sensor Malfunction | Dirt or misalignment | Clean the sensor and check alignment |
| Turntable Not Rotating | Belt tension issues | Check and adjust belt tension |
| Film Delivery System Issues | Film jam or incorrect tension | Clear any film jams and adjust tension settings |
If these troubleshooting steps do not resolve the issue, it is advisable to contact professional support. Persistent problems may indicate more complex underlying issues that require expert intervention. Always have the machine's serial number ready when reaching out for technical assistance to ensure quick and efficient service.
Safety Precautions for Maintaining the Lantech Q300
When maintaining the Lantech Q300, prioritizing safety is essential to prevent accidents and ensure smooth operation. The machine incorporates several built-in safety measures, but additional precautions should be followed during maintenance activities to mitigate risks. Understanding and adhering to these precautions can help protect personnel from potential hazards associated with the machine's moving parts and electrical systems.
-
Disconnect Power: Always disconnect the power supply before performing any maintenance tasks. This step is crucial in preventing electrical shocks or unintended machine operation.
-
Appropriate Tools: Use only recommended tools for maintenance tasks. Inappropriate tools can cause equipment damage or pose safety risks to the operator.
-
Lockout/Tagout Procedures: Implement lockout/tagout procedures to ensure the machine remains inoperable during maintenance. This procedure prevents accidental activation that could lead to injury.
- Trained Personnel: Ensure that only trained and qualified personnel perform maintenance. Proper training minimizes the risk of injury and ensures maintenance tasks are executed correctly.
Final Words
Optimizing the Lantech Q300 Stretch Wrapping System involves a thorough understanding of its key components, such as the Intelli-Sensor, which enhances reliability by eliminating manual adjustments. Regular maintenance ensures prolonged machine efficiency and safety.
When troubleshooting, addressing common issues like power failures and sensor malfunctions boosts performance. Adjustments, like those of the roll carriage and belt slack switch, promote operational accuracy.
By focusing on these aspects, packaging professionals can improve efficiency and reduce costs. The Lantech Q300 Stretch Wrapping System's load height sensor adjustments are pivotal in achieving dependable and precise wrapping results.
FAQ
What are the key components of the Lantech Q300 Stretch Wrapping System?
The Lantech Q300 includes a machine mast, turntable base, roll carriage, and the Intelli-Sensor for load height detection. The Intelli-Sensor offers reliable object detection without adjustment, with its focal distance specified on the sensor label.
How does the Intelli-Sensor for load height detection function?
The Intelli-Sensor detects object heights without manual adjustment, calibrated for a specific focal distance provided on its sensor label. Testing involves using targets to confirm the sensor’s range and accuracy.
What is the purpose of regular maintenance for the Lantech Q300?
Regular maintenance increases longevity and performance. It involves visual checks, such as inspecting fasteners and drive belts, and lubrication of certain components, despite the machine being designed as maintenance-free.
What are some essential maintenance tasks for the Lantech Q300?
- Inspect and tighten all machine fasteners
- Check drive belts for tension and wear
- Lubricate mechanisms as needed
- Ensure the machine's overall cleanliness
How can the roll carriage travel switches on the Q300 be adjusted?
Adjust roll carriage travel switches by loosening the proximity switch jam nuts and repositioning, ensuring safety precautions are followed. These switches control the roll carriage's maximum travel limits.
How do you adjust the belt slack limit switch on the Q300?
Adjustment involves loosening the Allen screw to position the switch arm correctly, ensuring the lift belt maintains appropriate tension. Post-adjustment, verify the switch's operation.
What are common issues with the Lantech Q300, and how can they be resolved?
- Power failures: Check power connections
- Incorrect wrap counts: Verify sensor alignments
- Sensor malfunctions: Recalibrate sensors and check settings
When should professional support be contacted for Q300 issues?
If the machine exhibits persistent issues after basic checks and adjustments, professional support should be contacted to ensure safe and proper function.
What safety precautions should be followed when maintaining the Q300?
- Disconnect the power before maintenance
- Use appropriate tools
- Follow lockout/tagout procedures
- Ensure the work area is safe and hazard-free
These measures help prevent accidental activation and ensure safe maintenance operations.
