Lantech Q300 Stretch Wrapping System: Turntable Fixes

Recommended for longevity

For all Q-Series Machines that do not include a Lantech factory scale package, we recommend the 31061677PEP-HD turntable conversion system. This system increases life expectancy of the turntable bearing assemblies by covering the bearings and protecting them from the elements including dust, dirt and other contaminates. This system also does away with the "divot" issue associated with the factory urethane ring. Leaving a resting load on the urethane can cause grooves or "divots" in the ring that lead to rough, noisy rotation and increased motor wear and tear. It can also cause uneven turntable rotation speed. This system permanently removes the urethane ring from the machine so that it never needs to be replaced in the future allowing the turntable to rotate directly on the covered rollers. It also keeps the bearings free from urethane fragments that can become lodged in the bearing assemblies as the urethane ring breaks down over time.  For more information, see the Recommended for longevity link above.



Is your Lantech Q300 turntable not spinning smoothly or making unexpected noises during operation? The efficiency and reliability of your packaging process hinge on a fully functional turntable, yet common issues can disrupt production and increase costs. Dive into our detailed troubleshooting guide for the Lantech Q300 Stretch Wrapping System, specifically targeting the turntable's hiccups. Discover solutions that can save you time and resources, ensuring your equipment remains in top condition. Whether you're dealing with non-rotation or peculiar sounds, our guide equips packaging specialists with actionable insights to maintain continuous workflows.



Overview of Turntable Troubleshooting for Lantech Q300

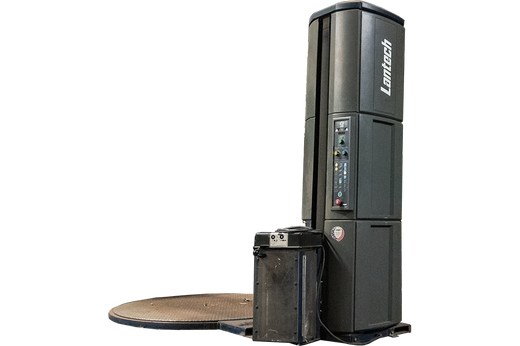

The Lantech Q300 is a robust, semi-automatic stretch wrapping system designed to manage substantial industrial loads. It boasts a turntable capable of handling up to 4000 pounds, with adjustable speeds ranging from 1 to 12 RPM. This versatility is achieved through a powered pre-stretch system that ensures efficient film application, optimizing stability for palletized loads during storage and transit. The system's design supports rigorous operations in diverse industrial settings, such as warehouses and manufacturing facilities, enhancing workflow efficiency.

Regular maintenance of the Lantech Q300 is crucial to uphold its operational integrity and prevent potential issues. Maintenance activities should include routine checks on the film delivery system, turntable drive belt, and roller components to detect wear and tear early. These preventative measures not only prolong the life of the machine but also ensure the safety and efficiency of its operations. Failure to conduct these routine checks could lead to operational disruptions, necessitating costly repairs or replacements.

The troubleshooting guide for the Lantech Q300 turntable system is structured to address common issues and provide solutions systematically. It covers a range of potential problems, from non-rotation and unexpected noises to difficulty in starting operations. Each issue is paired with actionable solutions, guiding users through a step-by-step diagnostic process. This guide serves as a comprehensive resource for maintaining optimal performance and minimizing downtime, ensuring that the Lantech Q300 continues to meet the demands of industrial usage effectively.



Identifying Common Turntable Issues on Lantech Q300

The Lantech Q300 turntable, a critical component of the semi-automatic stretch wrapping system, can encounter several operational issues. Common problems include the turntable failing to rotate, generating excessive noise, and experiencing start-up difficulties. Non-rotation could be linked to electrical malfunctions, drive belt issues, or motor failures. Noise during operation often arises from debris interference or uneven load distribution. Start-up challenges may stem from issues like drive tension or obstructed drive components.

• Non-rotation: Symptoms include no movement when the start button is pressed.
• Excessive noise: Identified by unusual sounds like grinding, popping or thumping during operation.
• Start-up difficulties: Characterized by delayed or inconsistent turntable motion.

Subsequent sections will delve into specific troubleshooting techniques for each of these issues, providing step-by-step guidance to diagnose and resolve them effectively. This structured approach ensures a comprehensive understanding of potential problems, enabling efficient resolution and minimal downtime in industrial operations.



Troubleshooting a Non-Rotating Turntable on Lantech Q300

The inability of the Lantech Q300 turntable to rotate can result from several underlying issues. Primary causes include:

• Electrical faults
• Belt tension problems
• Motor failures

To address these rotation issues, follow the structured troubleshooting guide below:

1. Check the Emergency Stop Switch:

   • Ensure that the emergency stop switch is not engaged. Disengage it if necessary to restore power to the turntable.

2. Verify Power Connections:

   • Inspect the power cord and ensure it is securely plugged into the power source.
   • Confirm that the power outlet is functioning correctly by testing it with a different device.

3. Inspect the Drive Belt:

• Examine the drive belt for any signs of wear, damage, or misalignment.
• Adjust the belt tension if it is too loose or too tight, as improper tension can prevent the turntable from rotating.

4. Examine the Motor Control Board:

   • Check for any blown fuses on the motor control board.
   • Verify that the control board is receiving the correct input voltage.

5. Test the Turntable Motor:

   • Listen for unusual noises or vibrations that may indicate motor issues.
   • If the motor does not operate, consider replacing it after confirming that all other components are working correctly.

By systematically following these steps, users can diagnose and rectify the non-rotation issues of the Lantech Q300 turntable, thereby restoring its operational functionality.

Resolving Turntable Noise Issues on Lantech Q300

Turntable noise issues in the Lantech Q300 are typically characterized by sounds such as "grinding or pops and thumps." These noises can be attributed to various factors, including:

• Debris interference in the drive assembly
• Uneven load distribution
• Damaged drive components or bearings
• Uneven flooring

To effectively resolve these noise issues, the following step-by-step guide is recommended:

1. Inspect the Turntable Surface:

   • Remove the load from the turntable and visually inspect the surface for debris or damage.
   • Thoroughly clean the surface, ensuring all debris is removed to prevent interference with the rotation.

2. Check the Drive Assembly:

   • Access the drive assembly by removing the turntable top. Inspect for any debris lodged within the bearing assemblies.
   • Look for signs of wear or damage in drive components such as the drive belt and pulley.

3. Evaluate Load Distribution:

• Verify that the load is centered on the turntable. Uneven loads can cause imbalance, leading to noise.
• Adjust the placement of the load to ensure even weight distribution across the turntable surface.

4. Inspect the Floor Level:
   • Ensure the machine is placed on a level surface. Uneven flooring can cause instability and noise during operation.
   • If necessary, adjust the machine's position or use leveling tools to stabilize the setup.

Addressing these areas systematically will help in mitigating noise issues, ensuring smoother and quieter operation of the Lantech Q300 turntable.

Addressing Turntable Start-Up Problems on Lantech Q300

Start-up problems with the Lantech Q300 turntable can stem from various mechanical and operational issues. Potential causes include:

• Drive tension issues
• Obstructions in the turntable assembly
• Electrical faults in control circuits

To troubleshoot these start-up problems, follow the steps outlined below:

1. Inspect the Drive Belt Tension:

   • Ensure the drive belt is correctly tensioned. A loose belt can slip, preventing the turntable from starting.
   • Be sure that the tensioner assembly is working properly to maintain optimal tension.

2. Check for Obstructions:

   • Remove the turntable top to access the internal components.
   • Inspect for any debris or foreign objects that may obstruct the turntable's movement. Check specifically in between and under the bearing assemblies.

3. Examine Electrical Connections:

• Verify that all electrical connections are secure and that the power supply is stable.
• Inspect the control circuits for any signs of damage or faults.

4. Assess the Turntable Motor:

   • Listen for unusual noises from the motor that might indicate issues.
   • Test the motor for proper operation, ensuring it receives adequate power.

5. Review Safety Features:

   • Ensure that safety switches, such as the emergency stop, are not engaged.
   • Check all safety systems to confirm they are functioning properly and not preventing start-up.

These steps provide a structured approach to diagnosing and resolving start-up issues with the Lantech Q300 turntable, ensuring efficient and reliable operation.

Comprehensive Turntable Troubleshooting for Lantech Q300

Effective troubleshooting of the Lantech Q300 turntable requires a structured approach, focusing on specific visual checks and utilizing the appropriate maintenance tools. Regular visual inspections are paramount, including assessments of the drive assembly, belt condition, and motor operation. Identifying wear or damage early can prevent significant operational disruptions.

Essential tools for maintaining and troubleshooting the Lantech Q300 include wrenches, Allen keys, and a multimeter. These tools allow for precise adjustments and accurate diagnostics of electrical components and mechanical assemblies. Employing the right tools ensures that any issues are addressed efficiently and effectively, minimizing downtime.

Preventative Maintenance Tips for Lantech Q300 Turntable

Regular maintenance of the Lantech Q300 turntable is essential to ensure safe and efficient operation. Implementing a routine maintenance schedule can significantly extend the machine's lifespan. Below are preventative maintenance tasks recommended for the Q300 turntable:

• Belt Tension Adjustment:

  • Examine the drive belt for proper tension and adjust as needed to prevent slippage and ensure smooth operation.

• Lubrication of Moving Parts:

  • Regularly lubricate the turntable's moving components such as the drive assembly and rollers to minimize friction and wear.

• Inspection of Safety Switches:

• Verify that all safety switches, including the emergency stop, are functional and respond promptly to activation.

• Visual Checks for Wear and Damage:

  • Conduct visual inspections for signs of wear or damage on critical components such as the turntable bearings and pre-stretch rollers.

• Cleaning of Debris:

  • Remove debris and clean the turntable surface and surrounding area to prevent operational interference and maintain optimal performance.

Routine maintenance should be performed weekly to monthly, depending on the machine's usage frequency. These proactive measures help maintain the turntable's efficiency and operational safety, ultimately reducing the likelihood of unexpected downtime.

Final Words

Troubleshooting is key, involving steps to check electrical systems, belt tensions, bearings, and motor functions, along with resolving various issues from uneven loads and debris interference to drive tension complexities.

Preventive maintenance, including regular inspections and timely adjustments, safeguards the system's longevity and efficiency.

FAQ

What are common issues with the Lantech Q300 turntable?

Common issues with the Lantech Q300 turntable include:

• Turntable failing to rotate due to belt damage or motor control failures.
• Noise during operation, often due to debris in the drive assembly or uneven loads.
• Start-up difficulties caused by drive tension issues or obstructions.

How can you troubleshoot a non-rotating turntable on the Lantech Q300?

When the Lantech Q300 turntable doesn’t rotate, potential fixes include:

1. Checking the emergency stop switch.
2. Verifying power connections.
3. Inspecting the drive belt for damage or misalignment.

How do you resolve noise issues on the Lantech Q300 turntable?

To address noise issues:

• Inspect the turntable surface for debris.
• Check the drive assembly bearings and components for damage or debris interference.
• Ensure that the machine is on a level surface to prevent uneven operation.

What are steps to fix start-up problems on the Lantech Q300?

To troubleshoot start-up issues:

1. Check for obstructions within the turntable assembly.
2. Adjust the drive belt tension.
3. Inspect all drive components for wear and damage.

What maintenance tips should be followed for the Lantech Q300 turntable?

Routine maintenance includes:

• Regularly checking and adjusting belt tension.
• Lubricating moving parts.
• Ensuring all safety switches are operational. Conduct these tasks weekly to monthly, based on usage level.

Which tools are essential for Lantech Q300 maintenance?

Maintenance tools include:

• Wrenches and Allen keys for securing nuts and bolts.
• A multimeter for electrical diagnostics. These tools help in performing visual checks and repairs effectively.

How can you extend the life of the Lantech Q300 machine?

To extend the machine's lifespan:

• Perform regular maintenance checks.
• Lubricate moving parts adequately.
• Ensure safety features are always functional.
• Install the 31061677PEP-HD conversion kit to remove the ring permanently.
